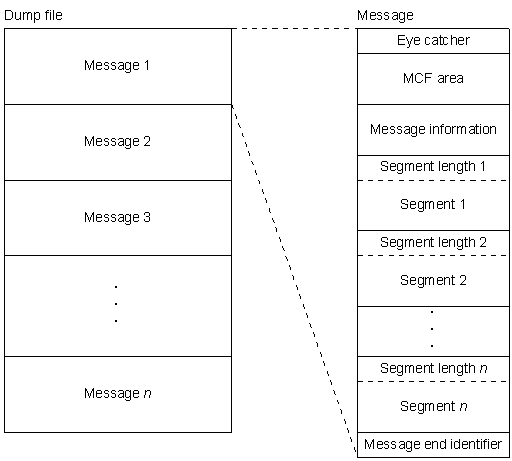

Executing the mcftdmpqu command causes messages to be successively output onto a dump file. The following figure shows the format of a dump file.

Figure A-1 Dump file format

The dump file format shown in Figure A-1 is explained:

• Eye catcher (4 bytes)
  Indicates which is the output message, a message for input queues or for output queues.
  ITQ: Message for input queues
  OTQ: Message for output queues

• MCF area (960 bytes)
  Indicates the area used by MCF.

• Message information (512 bytes)

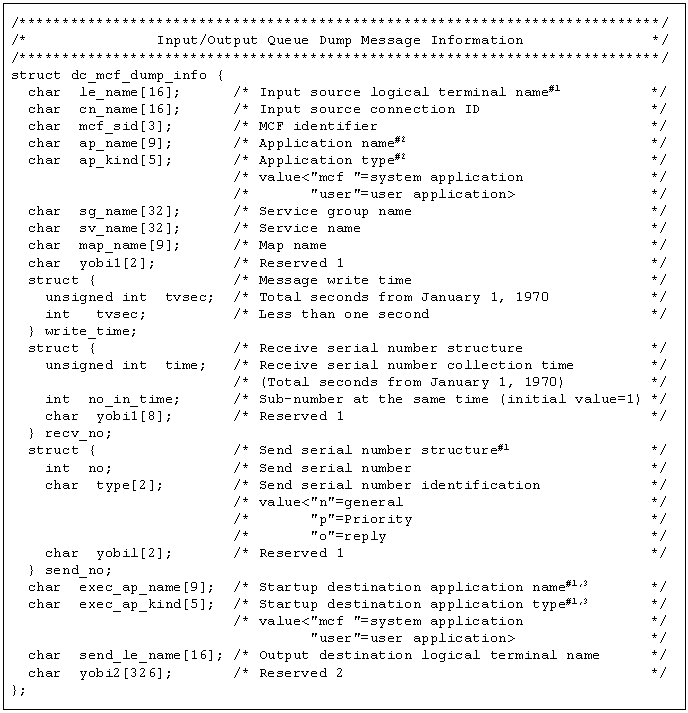

  Indicates the area that stores information about output messages. It can be referenced by the structure dc_mcf_dump_info. Figure A-2 shows the format of the structure.

• Segment length (4 bytes), segment
  Indicates the area giving the length of a segment, and the segment having the indicated segment length. A segment length and a segment makes up one set, which is repeated as many time as the number of segment used.

• Message end identifier (4 bytes)
  Indicates the area showing the end of a message, which stores NULL.


  Figure A-2 Format of structure dc_mcf_dump_info



#1

Set for output queue dump only.

#2

For a message sent from an SPP, ******* set in the application name and **** in the application type.

#3

If no application is started, ******* is appended to the startup destination application name and **** to the startup destination application type.
