tamls [-a] [TAM-table-name]

The tamls command outputs the status of TAM tables to the standard output.

-a

Specifies to output the following information:

• TAM file name
• TAM file status
• Access type
• Loading timing
• TAM record length
• Key area in records
• Key length
• Security
• I/O failure processing mode
• Key start location

TAM-table-name~<character string, identifier, 1-32 characters>

Specifies the name of a TAM table.

When this command argument is omitted, the status of all TAM tables is displayed.

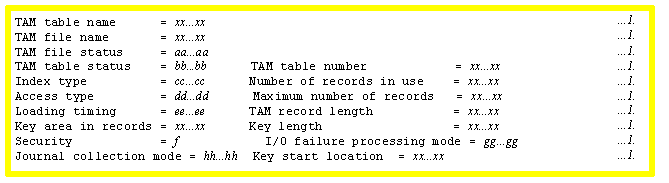

(1) The -a option specified

1. If no TAM table name is specified, the information is displayed repeatedly as many times as the number of TAM tables used.

aa...aa

TAM file status

normal: Non-shutdown status

failure shutdown: Error shutdown status

bb...bb

TAM table status (one of the following):

normal: Non-shutdown status

logical shutdown: Logical shutdown status

failure shutdown: Error shutdown status

failure recovery: Error recovery wait status

cc...cc

Index type (one of the following):

tree: Tree format:

hash: Hash format

dd...dd

Access type

read: Reference type

rewrite: Update type that cannot be added or deleted

write: Update type that can be added or deleted

reclck: Update type that does not secure table locks. reclck allows addition and deletion.

ee...ee

Loading timing

start: When the tamadd command is executed

cmd: When the tamload command is executed

lib: When the dc_tam_open function is issued

f

Access authority check

Y: Checked

N: Not checked

gg...gg

Failure processing mode of TAM file on I/O error

continue: Continues processing

stop: Assumes error shutdown status and Terminates processing

hh...hh

Journal collection mode

condense: Differential journal collection mode

no condense: Entire-record journal collection mode

(2) The -a option not specified

1. If no TAM table name is specified, the information is displayed repeatedly as many times as the number of TAM tables used.

aa...aa

TAM table status

normal: Non-shutdown status

logical shutdown: Logical shutdown status

failure shutdown: Error shutdown status

failure recovery: Error recovery wait status

bb...bb

Index type

tree: Tree type

hash: Hash type

Message ID	Description	Output destination
KFCA01701-E	Memory is inadequate.	Standard error output
KFCA01703-E	Address information of TAM service cannot be retrieved.	Standard error output
KFCA01704-E	TAM service has not been started.	Standard error output
KFCA01707-E	TAM table name is invalid.	Standard error output
KFCA01712-E	Number of arguments specified in the command is invalid.	Standard error output
KFCA01753-E	Overtime occurred.	Standard error output
KFCA01757-E	TAM table name exceeds 32 characters.	Standard error output
KFCA01761-E	I/O error occurred.	Standard error output
KFCA01764-E	V/R of TAM table is invalid.	Standard error output
KFCA01765-E	V/R of TAM server is invalid.	Standard error output
KFCA01767-E	Network error occurred in RPC.	Standard error output
KFCA01770-E	TAM service is terminating.	Standard error output
KFCA01775-E	Error occurred during definition analysis.	Standard error output
KFCA02854-I	Help message	Standard output
KFCA02878-E	Specified table is not a TAM table.	Standard error output
