lckpool (Display lock control table pool information)
Format
Function
The lckpool command outputs the utilization factor of the lock control table pool to the standard output.

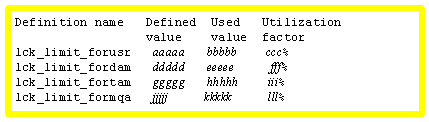

Output format
![[Figure]](FIGURE/ZU122500.GIF)
- aaaaa
- Maximum number of concurrent lock requests defined for the user server (decimal)
- bbbbb
- User server's current number of lock requests (decimal)
- ccc
- User server's current lock control table pool utilization factor (decimal)
- ddddd
- Maximum number of concurrent lock requests defined for DAM service (decimal)
- eeeee
- DAM service's current number of lock requests (decimal)
- fff
- DAM service's current lock control table pool utilization factor (decimal)
- ggggg
- Maximum number of concurrent lock requests defined for TAM service (decimal)
- hhhhh
- TAM service's current number of lock requests (decimal)
- iii
- TAM service's current lock control table pool utilization factor (decimal)
- jjjjj
- Maximum number of concurrent lock requests defined for MQA service (decimal)
- kkkkk
- MQA service's current number of lock requests (decimal)
- lll
- MQA service's current lock control table pool utilization factor (decimal)
Output messages
| Message ID |
Description |
Output destination |
| KFCA00430-E |
lckpool command cannot be executed. |
Standard error output |
| KFCA00432-I |
Help message |
Standard output,
standard error output |
| KFCA00433-E |
No lckpool command execution environment has been set up. |
Standard error output |
| KFCA00434-E |
lckpool command cannot be executed due to incompatible versions. |
Standard error output |
| KFCA00437-E |
lckpool command format is invalid. |
Standard error output |
