There are the following modes of combined use:

1. When the machine is an OpenTP1 RPC server and an XATMI interface communication client
2. When the machine is an XATMI interface communication server and an OpenTP1 RPC client

In mode (1), specify RPC and XATMI interface definitions for one file when creating a stub, and execute the stbmake command or tpstbmk command.

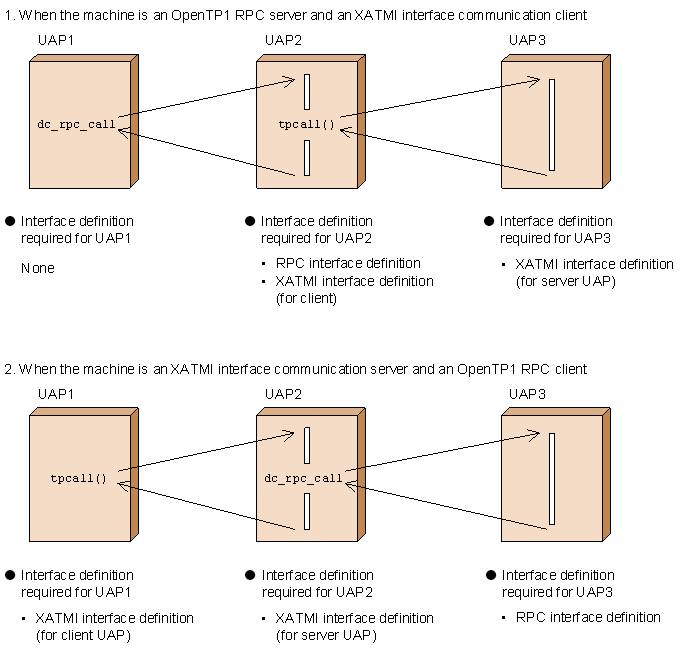

The figure below shows the modes of combined use of inter-process communication and the stubs required.

Figure A-1 Modes of combined use of inter-process communication and the stubs required
