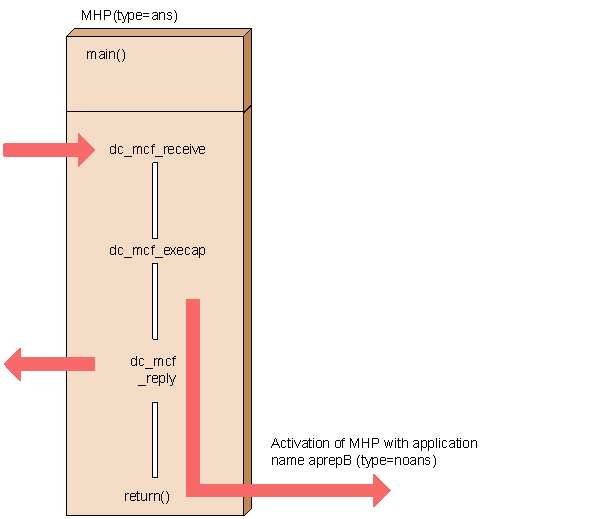

The figure below shows an example of a message exchange UAP.
Figure 7-3 Message exchange configuration UAP sample (MHP)
This section presents a coding example based on the configuration sample shown in the figure.
The following shows a coding example for the MHP main function.
10 /* 20 * MHP main function 30 */ 40 #include <stdio.h> 50 #include <dcrpc.h> 60 #include <dcmcf.h> 70 80 main() 90 { 100 int rtn_cod ; 110 120 printf("****** RPC OPEN *****\n") ; 130 /* 140 * RPC-OPEN (start the UAP) 150 */ 160 rtn_cod = dc_rpc_open(DCNOFLAGS) ; 170 if(rtn_cod != DC_OK) { 180 printf("dc_rpc_open failed !! CODE = %d \n", 185 rtn_cod) ; 190 goto PROG_END ; 200 } 210 220 printf("****** MCF OPEN *****\n") ; 230 /* 240 * MCF-OPEN (open the MCF environment) 250 */ 260 rtn_cod = dc_mcf_open(DCNOFLAGS) ; 270 if(rtn_cod != DC_OK) { 280 printf("dc_mcf_open failed !! CODE = %d \n", 285 rtn_cod) ; 290 goto PROG_END ; 300 } 310 320 printf("****** MCF MAINLOOP *****\n") ; 330 /* 340 * MCF-MAINLOOP (start the MHP service) 350 */ 360 rtn_cod = dc_mcf_mainloop(DCNOFLAGS) ; 370 if(rtn_cod != DC_OK) { 380 printf("dc_mcf_mainloop failed !! CODE = %d \n", 385 rtn_cod) ; 390 } 400 410 printf("****** MCF CLOSE *****\n") ; 420 /* 430 * MCF-CLOSE (close the MCF environment) 440 */ 450 dc_mcf_close(DCNOFLAGS) ; 460 470 PROG_END : 480 printf("****** RPC CLOSE *****\n") ; 490 /* 500 * RPC-CLOSE (terminate the UAP) 510 */ 520 dc_rpc_close(DCNOFLAGS) ; 530 exit(0) ; 540 }
The following shows a coding example for the MHP service function.
10 /* 20 * MHP service function 30 */ 40 #include <stdio.h> 50 #include <sys/types.h> 60 #include <dcmcf.h> 70 #include <dcrpc.h> 80 90 void svrA() 100 { 110 DCLONG action ; 120 DCLONG commform ; 130 DCLONG opcd ; 140 DCLONG active ; 150 char recvdata[1024] ; 160 DCLONG rdataleng ; 170 DCLONG time ; 180 DCLONG inbufleng ; 190 int rtn_cod ; 200 DCLONG cdataleng ; 210 char termnam[10] ; 220 static char execdata[32] = " SVRA EXECAP DATA" ; 230 static char senddata[32] = " SVRA REPLY DATA1" ; 240 static char resv01[9] = "\0" ; 250 static char resv02[9] = "\0" ; 260 static char resv03[9] = "\0" ; 270 static char apnam[9] = "aprepB" ; 280 290 printf("***** UAP START *****\n") ; 300 310 printf("***** MCF RECEIVE *****\n") ; 320 /* 330 * MCF-RECEIVE (receive messages) 340 */ 350 action = DCMCFFRST ; 360 commform = DCNOFLAGS ; 370 inbufleng = sizeof(recvdata) ; 380 rtn_cod = dc_mcf_receive(action, commform, 385 termnam, resv01, recvdata, 390 &rdataleng, inbufleng, &time) ; 400 if(rtn_cod != DCMCFRTN_00000) { 410 /* 420 * MCF-ROLLBACK (error processing) 430 */ 440 printf("dc_mcf_receive failed !! CODE = %d \n", 445 rtn_cod) ; 450 rtn_cod = dc_mcf_rollback(DCMCFNRTN) ; 460 } 470 480 printf("***** MCF EXECAP *****\n") ; 490 /* 500 * MCF-EXECAP (start the application program) 510 */ 520 action = DCMCFEMI|DCMCFJUST ; 530 commform = DCNOFLAGS ; 540 active = 0 ; 550 cdataleng = 16 ; 560 rtn_cod = dc_mcf_execap(action, commform, resv01, 570 active, apnam, execdata, cdataleng) ; 580 if(rtn_cod != DCMCFRTN_00000) { 590 /* 600 * MCF-ROLLBACK (error processing) 610 */ 620 printf("dc_mcf_execap failed !! CODE = %d \n", 625 rtn_cod) ; 630 rtn_cod = dc_mcf_rollback(DCMCFNRTN) ; 640 } 650 660 printf("***** MCF REPLY *****\n") ; 670 /* 680 * MCF-REPLY (send a response message) 690 */ 700 action = DCMCFEMI ; 710 commform = DCNOFLAGS ; 720 opcd = DCNOFLAGS ; 730 cdataleng = 16 ; 740 rtn_cod = dc_mcf_reply(action, commform, 745 resv01, resv02, senddata, 750 cdataleng, resv03, opcd) ; 760 if(rtn_cod != DCMCFRTN_00000) { 770 /* 780 * MCF-ROLLBACK (error processing) 790 */ 800 printf("dc_mcf_reply failed !! CODE = %d \n", 805 rtn_cod) ; 810 rtn_cod = dc_mcf_rollback(DCMCFNRTN) ; 820 } 830 }
