OpenTP1 Version 7 Programming Reference C Language

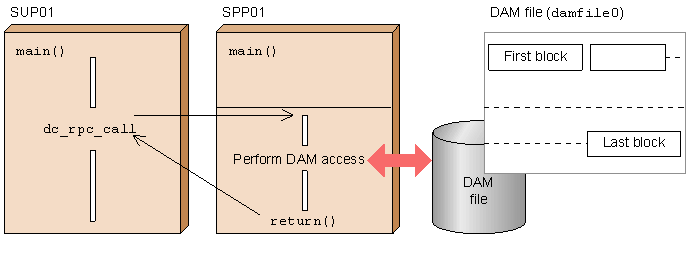

The figure below shows an example of a client/server configuration UAP.
Figure 7-1 Client/Server configuration UAP sample (DAM access)
This section presents a coding example based on the configuration sample shown in the figure.
The following shows a coding example for an SUP.
10 /* 20 * SUP01 30 */ 40 #include <stdio.h> 50 #include <string.h> 60 #include <dcrpc.h> 70 #include <dctrn.h> 80 90 main() 100 { 110 /* 120 * Define variables 130 */ 140 static char in_buf[1024]; 150 static DCLONG in_buf_len; 160 static char out_buf[1024]; 170 static DCLONG out_buf_len; 180 int rc; 190 /* 200 * RPC-OPEN (start the UAP) 210 */ 220 rc = dc_rpc_open(DCNOFLAGS); 230 /* Prepare to use various OpenTP1 functions */ 235 /* (initialize each function) */ 240 if(rc != DC_OK) { 250 printf("SUP01:dc_rpc_open failed. CODE = %d \n",rc); 260 goto PROG_END; 270 } 280 /* 290 * ADM-COMPLETE (report completion 295 * of user server start processing) 300 */ 310 rc = dc_adm_complete(DCNOFLAGS); 320 if(rc != DC_OK){ 330 printf("SUP01:dc_adm_complete failed." 335 "CODE = %d \n",rc); 340 goto PROG_END; 350 } 360 /* 370 * TRN_BEGIN (start the transaction) 380 */ 390 rc = dc_trn_begin(); 400 if(rc != DC_OK) { 410 printf("SUP01:dc_trn_begin failed. CODE = %d \n",rc); 420 goto TRAN_END; 430 } 440 /* 450 * RPC-CALL (request a remote service) 460 */ 470 strcpy(in_buf,"SUP01:DATA OpenTP1!!"); 480 in_buf_len = strlen(in_buf) + 1; 490 out_buf_len = 1024; 500 rc = dc_rpc_call("spp01grp","svr01", 505 in_buf,&in_buf_len, 510 out_buf,&out_buf_len,DCNOFLAGS); 520 if(rc != DC_OK) { 530 printf("SUP01:Service request failed. " 535 "CODE = %d \n",rc); 540 goto TRAN_END; 550 } 560 printf("SUP01:SERVICE FUNCTION RETURN = %s\n", 565 out_buf); 570 /* 580 * TRN-UNCHAINED-COMMIT (commit in unchained mode) 590 */ 600 TRAN_END: 610 rc = dc_trn_unchained_commit(); 620 if(rc != DC_OK) { 630 printf("SUP01:dc_trn_unchained_commit failed. " 635 "CODE = %d \n",rc); 640 } 650 /* 660 * RPC-CLOSE (terminate the UAP) 670 */ 680 PROG_END: 690 dc_rpc_close(DCNOFLAGS); 700 printf("SUP01:Processing is finished.\n"); 710 exit(0); 720 }
The following shows a coding example for the SPP main function.
10 /* 20 * SPP01 main function 30 */ 40 #include <stdio.h> 50 #include <dcrpc.h> 60 #include <dcdam.h> 70 #define DAMFILE "damfile0" 80 90 int damfd; /* damfile file-id */ 100 110 main() 120 { 130 /* 140 * Define area for storing return value 150 */ 160 int rc; 170 /* 180 * RPC-OPEN (start the UAP) 190 */ 200 rc = dc_rpc_open(DCNOFLAGS); 210 if(rc != DC_OK) { 220 printf("SPP01:dc_rpc_open failed. CODE = %d \n",rc); 230 goto PROG_END; 240 } 250 /* 260 * DAM-OPEN (open a logical file) 270 */ 280 rc = dc_dam_open(DAMFILE,DCDAM_BLOCK_EXCLUSIVE); 290 if(rc < DC_OK) { 300 printf("SVR01:dc_dam_open failed. CODE = %d \n",rc); 310 goto DAM_END; 320 } 330 damfd = rc; 340 /* 350 * RPC-MAINLOOP (start the SPP service) 360 */ 370 printf("SPP01:mainloop begins.\n"); 380 rc = dc_rpc_mainloop(DCNOFLAGS); 390 if(rc != DC_OK) { 400 printf("SPP01:dc_rpc_mainloop \ 410 failed. CODE = %d \n",rc); 420 } 430 /* 440 * DAM-CLOSE (close the logical file) 450 */ 460 DAM_END: 470 rc = dc_dam_close(damfd,DCNOFLAGS); 480 if(rc != DC_OK) { 490 printf("SVR01:dc_dam_close failed. CODE = %d\n",rc); 500 } 510 /* 520 * RPC-CLOSE (terminate the UAP) 530 */ 540 PROG_END: 550 dc_rpc_close(DCNOFLAGS); 560 printf("SPP01:The SPP service processing is " 565 "terminated. \n"); 570 exit(0); 580 }
The following shows a coding example for the SPP service function.
10 /* 20 * SVR01 service function 30 */ 40 #include <stdio.h> 50 #include <string.h> 60 #include <dcrpc.h> 70 #include <dcdam.h> 80 #define DAMFILE "damfile0" 90 #define DAM_BLK_SIZE 504 100 #define REWRITE_LEN 19 110 extern int damfd; 120 130 void svr01(in_data,in_leng,out_data,out_leng) 140 char *in_data; 150 DCLONG *in_leng; 160 char *out_data; 170 DCLONG *out_leng; 180 { 190 /* 200 * Define variables 210 */ 220 static struct DC_DAMKEY keyptr; 230 static char *damc_buf; 240 static char dam_cntl_buf[DAM_BLK_SIZE]; 250 static char write_buf[DAM_BLK_SIZE]; 260 struct dam_cntl_p { 270 int w_point; 280 char rewrite_data[REWRITE_LEN]; 290 } *dam_cntl_p; 300 int rc; 310 int write_size; 320 int rewrite_size; 330 int damc_buf_size; 340 350 keyptr.fstblkno = 0; 360 keyptr.endblkno = 0; 370 damc_buf_size = DAM_BLK_SIZE; 380 printf("SVR01:Start of processing\n"); 390 /* 400 * DAM_READ(read logical file blocks) 410 */ 420 rc = dc_dam_read(damfd,&keyptr,1,dam_cntl_buf, 430 damc_buf_size,DCDAM_MODIFY); 440 if(rc != DC_OK) { 450 printf("SVR01:dc_dam_read failed. CODE = %d \n",rc); 460 strcpy(out_data,"SVR01:DAM READ FAILED"); 470 *out_leng = strlen(out_data); 480 goto PROG_END; 490 } 500 /* 510 * DAM_WRITE (write to logical file blocks) 520 * DAM_REWRITE (update logical file blocks) 530 */ 540 DAM_WRITE: 550 dam_cntl_p = (struct dam_cntl_p *)dam_cntl_buf; 560 write_size = DAM_BLK_SIZE; 570 memcpy(write_buf,in_data,*in_leng); 580 dam_cntl_p->w_point = dam_cntl_p->w_point + 1; 590 keyptr.fstblkno = dam_cntl_p->w_point; 600 keyptr.endblkno = 0; 610 rc = dc_dam_write(damfd,&keyptr,1,write_buf, 620 write_size,DCNOFLAGS); 630 if(rc != DC_OK) { 640 if(rc == DCDAMER_BNOER) { 650 dam_cntl_p->w_point = 0; 660 goto DAM_WRITE; 670 } 680 printf("SVR01:dc_dam_write failed. " 685 "CODE = %d \n",rc); 690 strcpy(out_data,"SVR01;DAM WRITE FAILED"); 700 *out_leng = strlen(out_data); 710 goto PROG_END; 720 } 730 keyptr.fstblkno = 0; 740 keyptr.endblkno = 0; 750 damc_buf_size = DAM_BLK_SIZE; 760 sprintf(dam_cntl_p->rewrite_data, 765 "REWRITE COMPLETE\n"); 770 rc = dc_dam_rewrite(damfd,&keyptr,1,dam_cntl_buf, 780 damc_buf_size,DCDAM_UPDATE); 790 if(rc != DC_OK) { 800 printf("SVR01:dc_dam_rewrite failed. " 805 "CODE = %d\n",rc); 810 strcpy(out_data,"SVR01:DAM REWRITE FAILED"); 820 *out_leng = strlen(out_data); 830 } 840 strcpy(out_data,"SVR01:PROCESS COMPLETE"); 850 *out_leng = strlen(out_data); 860 PROG_END: 870 printf("SVR01:Processing is terminated.\n"); 880 return; 890 }
