OpenTP1 Version 7 Programming Reference C Language
dc_mcf_tempget - Accept temporary-stored data
Format
ANSI C, C++
#include <dcmcf.h>} int dc_mcf_tempget(DCLONG action,char *getdata,DCLONG gtempleng, DCLONG *gdataleng,char *resv01) |
K&R C
#include <dcmcf.h> int dc_mcf_tempget (action,getdata,gtempleng,gdataleng,resv01) DCLONG action; char *getdata; DCLONG gtempleng; DCLONG *gdataleng; char *resv01; |
Description
The function dc_mcf_tempget() receives data stored in the temporary-stored area which is used for continuous-inquiry-response processing.
For gtempleng, specify a value from 1 to 32,000 bytes. If the temporary-stored data exceeds the length specified for gtempleng, the excess portion is truncated. If the temporary-stored data is shorter than gtempleng -8 (with buffer format 1) or gtempleng -6 (with buffer format 2), no processing is done for the remaining receive area.
If there is no temporary-stored data, the function dc_mcf_tempget() is executed on the assumption that (00)16 equivalent to the length specified for tempsize in the MCF application definition is specified.

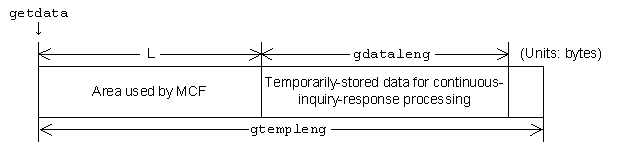

The figure below shows the format of the receive segment area. With buffer format 1, L is 8 bytes; with buffer format 2, L is 6 bytes.
Arguments whose values are set in the UAP
action
Specify the type of buffer format to be used.
{DCMCFBUF1|DCMCFBUF2} |
getdata
Specify the area for receiving temporary-stored data. After the function dc_mcf_tempget() is called, the temporary-stored data is returned to the area indicated by getdata.
gtempleng
Specify the length of the area for receiving temporary-stored data. The number of bytes to be specified varies depending on the buffer format.
resv01
Specify a null character.
Arguments whose values are returned from OpenTP1
getdata
The temporary-stored data is returned.
gdataleng
The length of previously updated data is returned.
Return values
Return value | Return value (numeric) | Explanation |
---|---|---|
DCMCFRTN_00000 | 0 | Normal termination. |
DCMCFRTN_72000 | -13000 | The function dc_mcf_tempget() cannot be called from an SPP. |
DCMCFRTN_72013 | -13013 | Temporary-stored data exceeding the length of the receive area was received. The excess portion was truncated. |
DCMCFRTN_72016 | -13016 | The value specified for action is invalid. |
The value of the area pointed to by resv01 is not a null character. | ||
DCMCFRTN_72036 | -13036 | The receive area length is less than 9 bytes (with buffer format 1) or less than 7 bytes (with buffer format 2). |
DCMCFRTN_72101 | -13101 | The function dc_mcf_tempget() was called from an MHP for which type=cont (continuous-inquiry-response type) was not specified in the MCF application definition. |
DCMCFRTN_72106 | -13106 | The function dc_mcf_tempget() was called before the function dc_mcf_receive() for receiving the first segment. |
DCMCFRTN_72107 | -13107 | The function dc_mcf_tempget() was called after the function dc_mcf_contend(). |
Other than the above | An unprecedented error (e.g., program damage) occurred. |
