The figure below shows the procedure for creating an SUP.

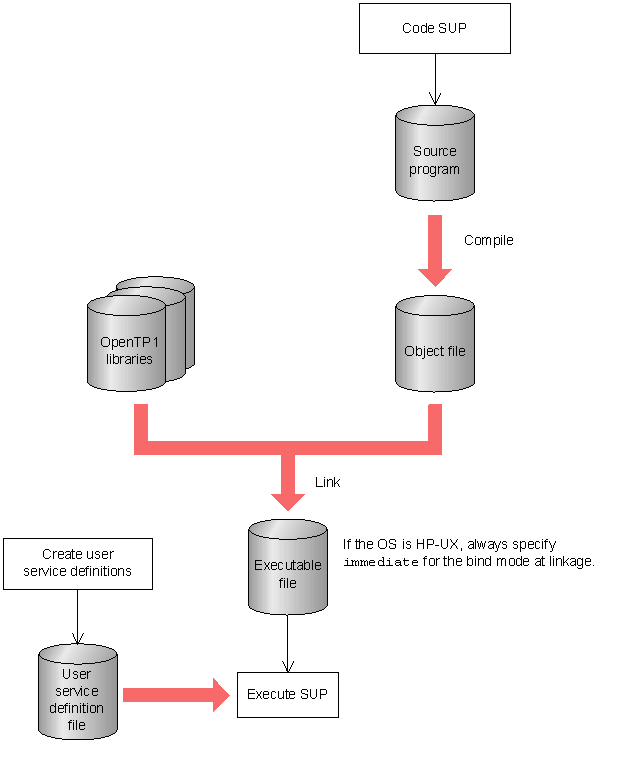

Figure 1-1 General procedure for creating SUPs
The SPP creation procedure depends on whether the SPP uses a stub or uses dynamic loading of service functions.
The figure below shows the general procedure for creating an SPP by using a stub.

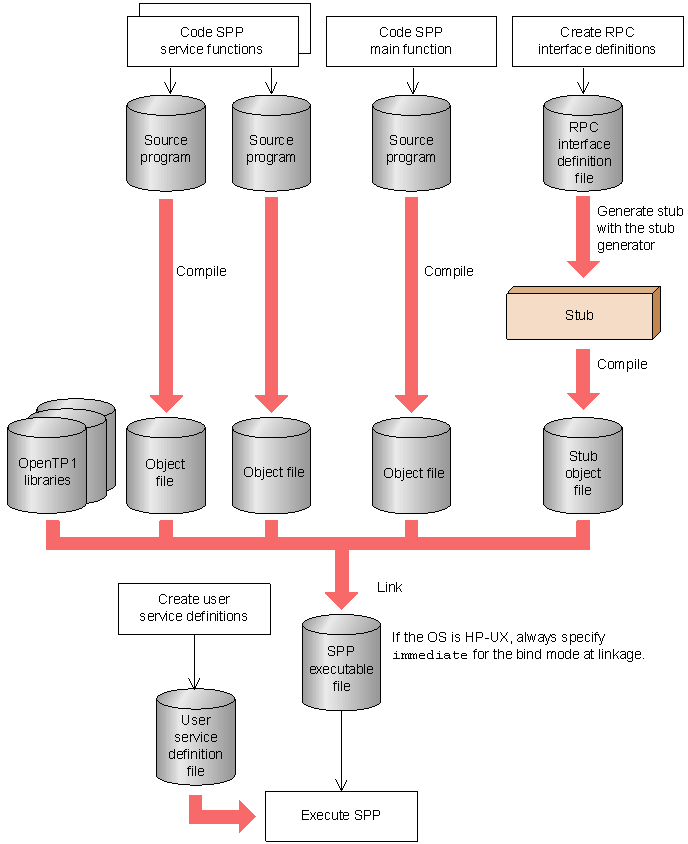

Figure 1-2 General procedure for creating an SPP (when using a stub)
The following shows the general procedure for creating an SPP that dynamically loads service functions.

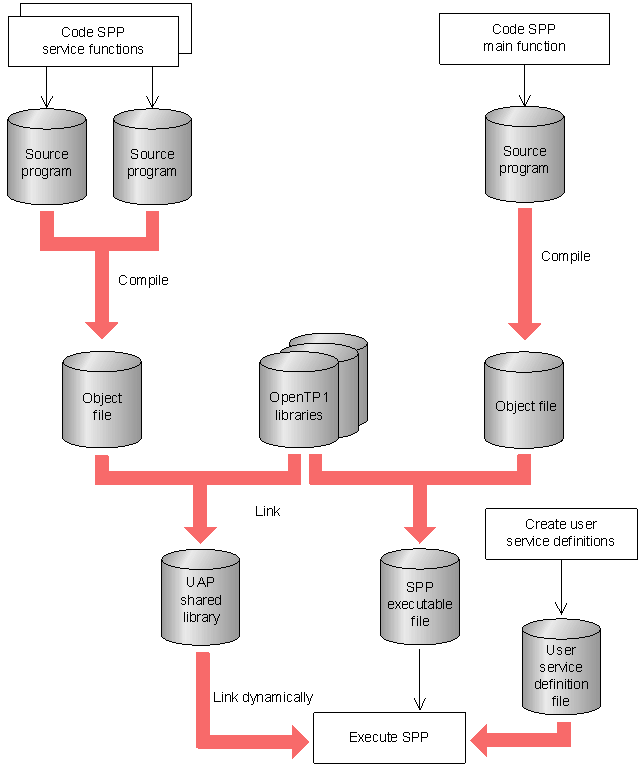

Figure 1-3 General procedure for creating an SPP (when using dynamic loading of service functions)
The MHP creation procedure depends on whether the MHP uses a stub or uses dynamic loading of service functions.
The figure below shows the general procedure for creating an MHP that uses a stub.

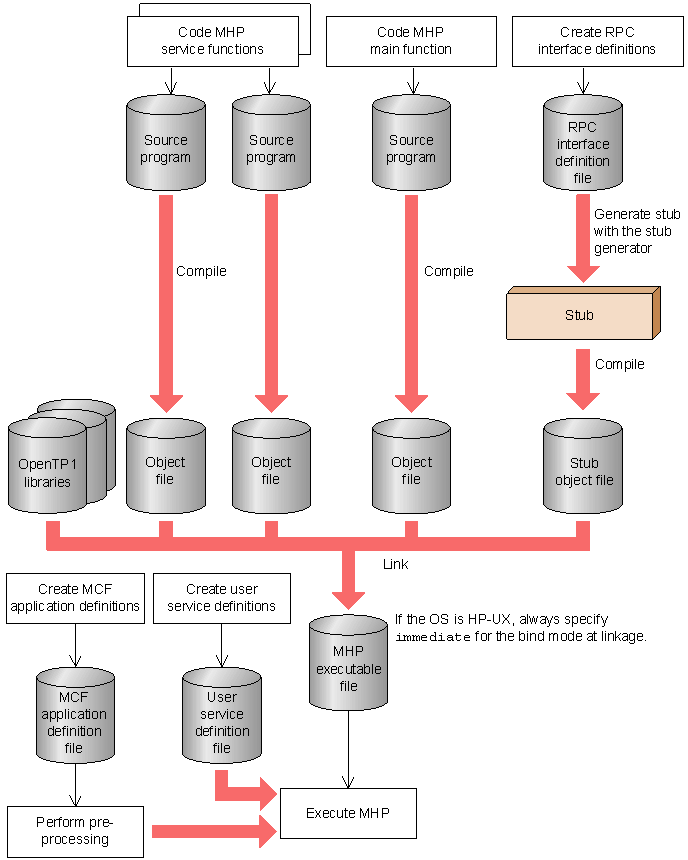

Figure 1-4 General procedure for creating an MHP (when using a stub)
The figure below shows the general procedure for creating an MHP that uses dynamic loading of service functions.

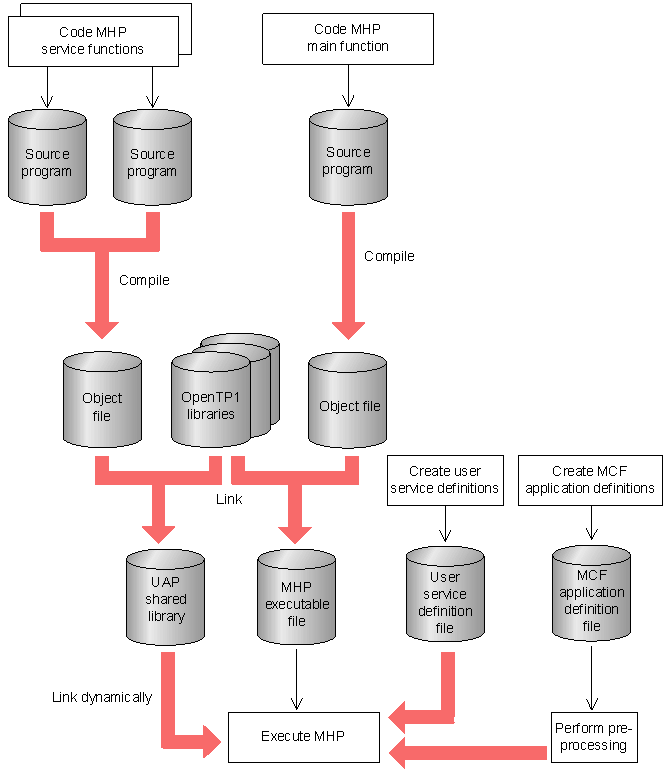

Figure 1-5 General procedure for creating an MHP (when using dynamic loading of service functions)
The figure below shows the general procedure for creating a UAP that handles offline work.

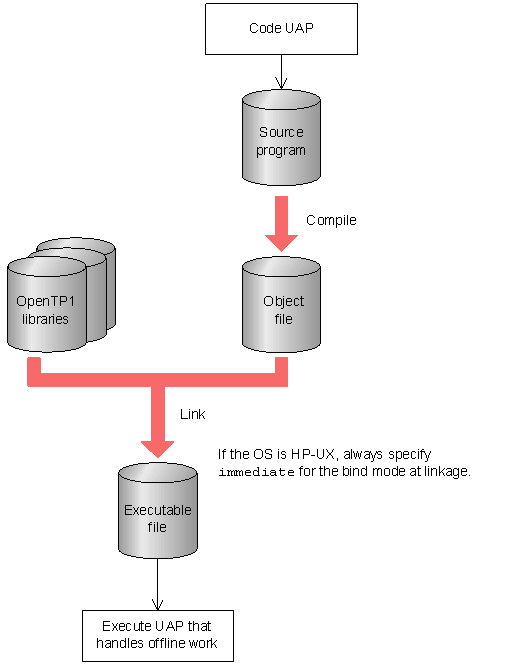

Figure 1-6 General procedure for creating a UAP that handles offline work
