OpenTP1 Version 7 System Definition
To ensure smooth operation, the MCF application definition is created in a separate file for each MCF communication configuration definition. In the MCF operation mode, there is one MCF application definition for n (n is an integer greater than or equal to 1) MCF communication configuration definitions.

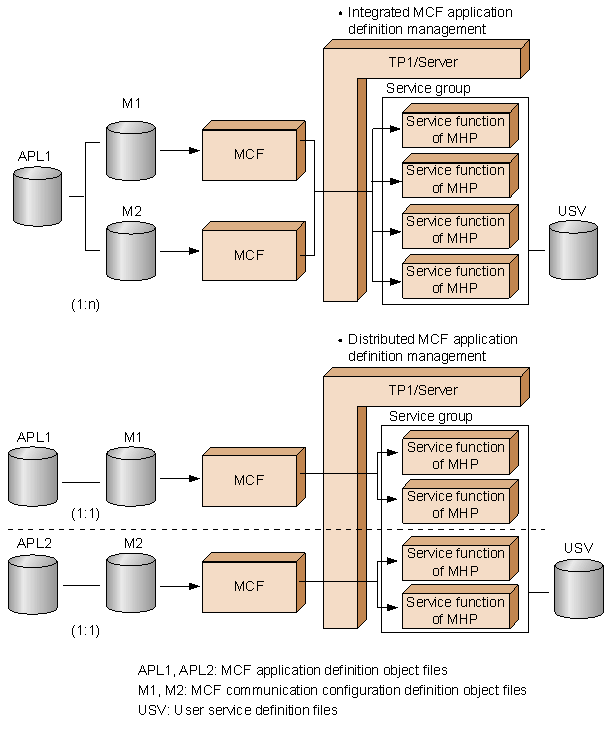

The relationship between the MCF operation mode and the definition object files is shown in Figure 4-1. For a mode as shown in the upper diagram, manage the MCF application definition files as one file. For a mode as shown in the lower diagram, manage the MCF application definition files separately for each MCF.
Figure 4-1 Relationship between MCF operation mode and definition object files
